VMC Tool Holder: A Critical Component for Precision CNC Machining

In modern manufacturing, precision and efficiency are essential for producing high-quality components. One of the most important yet often overlooked elements in CNC machining is the VMC tool holder. Used in Vertical Machining Centers (VMC), this component plays a crucial role in holding and stabilizing cutting tools during machining operations.

A high-quality VMC Tool Holder ensures accurate tool positioning, reduces vibration, and improves overall machining performance. For industries that rely on precision engineering, choosing the right tool holder is just as important as selecting the cutting tool itself. At Jay Tech Tools, advanced VMC tool holders are designed to deliver reliability, precision, and long-term performance in demanding industrial environments.

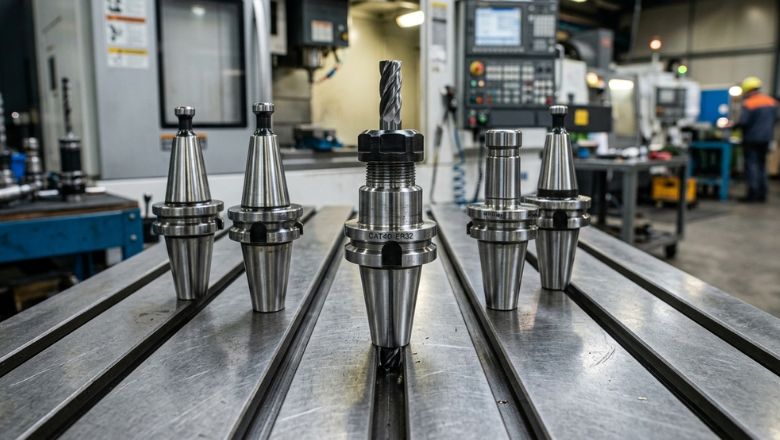

A VMC tool holder is a device used to securely hold cutting tools such as end mills, drills, and reamers in a vertical machining center. It acts as the connection between the machine spindle and the cutting tool, ensuring proper alignment and stability during operation.

The effectiveness of any machining process depends heavily on how securely the tool is held. Poor tool holding can result in inaccuracies, tool wear, and even machine damage. Therefore, high-precision tool holders are essential for achieving consistent machining results.

Tool holders are not just accessories—they directly impact machining quality and efficiency.

1. Precision and Accuracy :

A well-balanced tool holder ensures minimal runout, which helps maintain dimensional accuracy in machined components.

2. Reduced Vibration :

Stable tool holding reduces vibration during cutting operations, leading to smoother finishes and extended tool life.

3. Higher Productivity :

Efficient tool holding allows higher cutting speeds and feed rates, improving overall productivity.

4. Tool Life Improvement :

Proper clamping reduces unnecessary stress on cutting tools, increasing their lifespan.

In high-speed CNC operations, even a slight imbalance in the tool holder can affect performance significantly.

Different machining applications require different types of tool holders. Some of the most commonly used VMC tool holders include:

1. ER Collet Chuck :

Widely used for general machining, ER collet chucks provide flexibility and strong grip for various tool sizes.

2. Side Lock Holder (End Mill Holder) :

These holders are designed for heavy-duty machining and are ideal for holding end mills securely using a locking screw.

3. Hydraulic Tool Holder :

Hydraulic holders use fluid pressure to clamp tools, offering excellent vibration damping and high precision.

4. Shrink Fit Holder :

Shrink fit holders provide superior concentricity and are commonly used in high-speed machining applications.

Each type is designed for specific machining requirements, and selecting the right one improves both efficiency and output quality.

The durability and performance of a VMC tool holder depend on its material and manufacturing quality.

1. Alloy Steel Construction :

Most tool holders are made from high-grade alloy steel for strength and durability.

2. Heat Treatment :

Proper heat treatment enhances hardness and wear resistance, ensuring long tool life.

3. Precision Grinding :

High-precision grinding ensures accurate dimensions and minimal runout.

Manufacturers like Jay Tech Tools focus on strict quality control and advanced machining processes to deliver tool holders that meet industrial standards.

Choosing the right tool holder is essential for achieving optimal machining results.

Machine Compatibility :

Ensure the tool holder matches the spindle type (BT, CAT, or HSK).

Tool Type :

Different tools require specific holders, such as collet chucks for drills or side lock holders for end mills.

Runout Accuracy :

Lower runout ensures better precision and surface finish.

Balancing Grade :

For high-speed machining, balanced tool holders are necessary to reduce vibration.

Clamping Force :

Strong clamping improves tool stability and prevents slippage during cutting.

Selecting the right combination of these factors enhances both efficiency and machining quality.

Using premium tool holders offers several benefits:

• Improved machining accuracy

• Better surface finish

• Reduced tool wear

• Increased operational efficiency

• Lower maintenance costs

For industries aiming for consistent production quality, investing in high-performance tool holders is essential.

As CNC machining continues to evolve, the demand for precision components is increasing. Tool holders play a key role in meeting these demands by ensuring stable and accurate machining operations.

Advanced manufacturing environments require tools that can handle high speeds, tight tolerances, and continuous operations. VMC tool holders contribute significantly to achieving these goals by providing reliable tool clamping and consistent performance.

VMC tool holders are a fundamental component in CNC machining that directly influences accuracy, efficiency, and tool life. From automotive to aerospace industries, their importance cannot be overlooked.

Choosing high-quality tool holders from trusted manufacturers like Jay Tech Tools ensures reliable performance, reduced downtime, and improved machining results. For businesses focused on precision and productivity, investing in the right tool holding solutions is a smart and necessary decision. For customized tooling solutions and expert guidance, you can Get in touch with our technical team.
