VMC Tool Holder: Improve Precision, Productivity & Tool Life in CNC Machining

In today’s highly competitive manufacturing environment, achieving precision and efficiency is critical. One of the most important yet often overlooked components in CNC machining is the VMC tool holder. Whether you are working in automotive, aerospace, or general engineering, the right tool holder can significantly impact machining performance, surface finish, and tool life.

At Jay Tech Tools, we understand the importance of high-quality tooling solutions that deliver consistent performance and reliability. In this blog, we will explore the role, types, benefits, and selection criteria of VMC Tool Holder to help you optimize your machining operations.

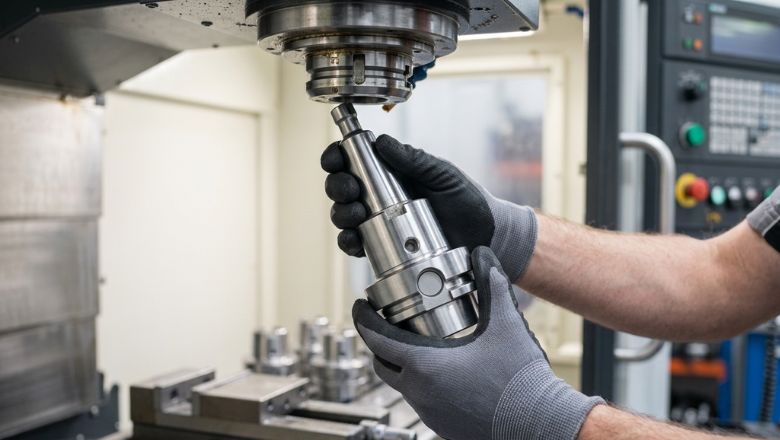

A VMC tool holder is a device used to securely hold cutting tools in a Vertical Machining Center (VMC). It connects the spindle of the CNC machine to the cutting tool, ensuring proper alignment, rigidity, and balance during machining operations.

The performance of your entire machining process depends heavily on how well the tool is held. Even slight vibrations or misalignment can result in poor surface finish, reduced tool life, and increased operational costs.

Using the right tool holder is not just about holding the tool—it directly affects productivity and quality. Here’s why they are essential:

1. Enhanced Precision :

A high-quality holder ensures accurate positioning of the cutting tool, reducing runout and improving dimensional accuracy.

2. Improved Surface Finish :

Stable tool holding minimizes vibration, resulting in smoother and more consistent finishes.

3. Increased Tool Life :

Proper clamping reduces wear and tear on cutting tools, extending their lifespan.

4. Higher Productivity :

Efficient tool holding allows higher cutting speeds and feeds without compromising quality.

Different machining applications require different types of holders. Understanding these types helps you choose the right one for your needs.

1. ER Collet Chuck :

Widely used for general machining operations, offering flexibility and good gripping force.

2. Hydraulic Tool Holder :

Provides excellent vibration damping and is ideal for high-precision applications.

3. Shrink Fit Holder :

Uses heat to expand the holder and clamp the tool tightly, ensuring superior accuracy and balance.

4. Milling Chuck Holder :

Designed for heavy-duty machining operations with high gripping torque.

5. Side Lock Holder :

Commonly used for end mills where strong lateral holding is required.

For heavy-duty machining, you can also explore our High-performance CNC cutting tools designed for demanding applications.

Selecting the right holder is crucial for maximizing performance. Here are some important factors:

1. Runout Accuracy :

Lower runout ensures better precision and longer tool life.

2. Clamping Force :

Adequate clamping prevents tool slippage during high-speed operations.

3. Balance Quality :

High-speed machining requires well-balanced holders to avoid vibration.

4. Application Type :

Choose based on whether you are performing drilling, milling, or finishing operations.

5. Compatibility with Machine Spindle :

Ensure the holder matches your machine taper (BT, CAT, HSK, etc.).

Using low-quality or incorrect holders can lead to multiple issues:

• Excessive vibration during machining
• Poor surface finish
• Increased tool breakage
• Reduced machining accuracy
• Higher production costs

These problems not only affect product quality but also reduce overall efficiency.

Investing in premium tool holders may seem costly initially, but it provides long-term benefits:

• Reduced downtime
• Lower tool replacement cost
• Improved machining consistency
• Higher output with less rejection

This directly increases your return on investment (ROI).

At Jay Tech Tools, we offer high-performance tooling solutions designed for modern machining needs. Our tool holders are manufactured with precision engineering to ensure:

• High accuracy and low runout
• Superior durability
• Consistent performance
• Compatibility with multiple CNC systems

We are committed to helping manufacturers improve efficiency and productivity through reliable tooling solutions.

With advancements in manufacturing, tool holding technology is evolving rapidly:

• Smart tool holders with sensors
• High-speed balanced holders
• Advanced materials for durability
• Improved vibration damping systems

Staying updated with these trends can give manufacturers a competitive edge.

The importance of a VMC tool holder in CNC machining cannot be overstated. From precision and surface finish to productivity and cost efficiency, the right tool holder plays a crucial role in overall performance.

If you are looking to enhance your machining operations, investing in high-quality tooling solutions from Jay Tech Tools can make a significant difference.

If you need expert guidance, feel free to Get in touch with our tooling specialists today.
